Bulag nga yellow 83- Corimax Dilaw nga HR02

Technical parameters of Pigment yellow 83

Ang kolor sa Index No.Bulak nga yellow 83
Ngalan sa produktoCorimax Yellow HR02
Kategoriya sa produktoBulawan sa Organiko
Numero sa CAS5567-15-7
Numero sa EU226-939-8
Pamilya sa KemikalDisazo
Timbang nga Molekular818.49
Pormula sa MolekularC36H32CI4N6O8
Gipatin-aw ang PH6.0-7.0
Densidad1.7
Pagsuyup sa Langis (ml / 100g)%35-45
Kahayag nga Kape (Pag-ayo)5-6
Pagpugong sa Pag-init (panapton)180
Kahayag nga Kape (plastik)7
Pag-init sa Pag-init (plastik)200
Pagbatok sa Tubig5
Pagbalhin sa lana5
Pagsukol sa Asido5
Pagbatok sa Alkali5
Kolor
Bulawan-Dilaw-83-Kolor
Pagpanagtag sa hue

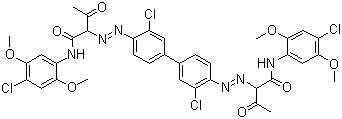

Molekular nga istruktura:

Mga bahin: hubad.

Aplikasyon:

Recommended for architectural coatings, coil coatings, industrial coatings, powder coatings, printing pastes, PVC, rubber, PP, PE, water based inks, solvent inks, UV inks.
Can be used for PS, PU, offset ink.

MSDS(Pigment yellow 83) —————————————————————— - ———————————————

May Kalabutan nga Impormasyon

Novoperm Yellow HR has a specific surface area of ​​69m2 / g, and has excellent light resistance, heat resistance, solvent resistance and migration resistance. It gives a stronger red light yellow than Pigment Yellow 13 (similar to Pigment Yellow 10, and has 1 times higher strength) . Suitable for various printing inks and automotive coatings (OEM), latex paints; widely used in plastic coloring, soft PVC does not migrate and bleed even at low concentrations, light fastness level 8 (1 / 3SD), Grade 7 (1 / 25SD); High color strength (1 / 3SD) in HDPE, 0.8% pigment concentration; Can also be used for solvent-based wood coloring, artistic color, and brown with carbon black; the quality of pigment can meet Fabric printing and dyeing, dry and wet first treatment will not affect the color and light, so as to prepare the product shape.

Mga Aliase:

21108; C.I. Pigment Yellow 83; 2,2'-[(3,3'-Dichloro[1,1'-biphenyl]-4,4'-diyl)bis(azo)]bis[N-(4-chloro-2,5-dimethoxyphenyl)-3-oxobutyramide]; C.I. 21108; Permanent Yellow HR; FAST BRILLIANT YELLOW HR; 2,2'-[(3,3'-dichlorobiphenyl-4,4'-diyl)di(E)diazene-2,1-diyl]bis[N-(4-chloro-2,5-dimethoxyphenyl)-3-oxobutanamide]; 2-[2-chloro-4-[3-chloro-4-[1-[(4-chloro-2,5-dimethoxy-phenyl)carbamoyl]-2-oxo-propyl]azo-phenyl]phenyl]azo-N-(4-chloro-2,5-dimethoxy-phenyl)-3-oxo-butanamide

IUPAC Name: 2-[[2-chloro-4-[3-chloro-4-[[1-(4-chloro-2,5-dimethoxyanilino)-1,3-dioxobutan-2-yl]diazenyl]phenyl]phenyl]diazenyl]-N-(4-chloro-2,5-dimethoxyphenyl)-3-oxobutanamide

InChI: InChI=1S/C36H32Cl4N6O8/c1-17(47)33(35(49)41-27-15-29(51-3)23(39)13-31(27)53-5)45-43-25-9-7-19(11-21(25)37)20-8-10-26(22(38)12-20)44-46-34(18(2)48)36(50)42-28-16-30(52-4)24(40)14-32(28)54-6/h7-16,33-34H,1-6H3,(H,41,49)(H,42,50)

InChIKey: NKXPXRNUMARIMZ-UHFFFAOYSA-N

Canonical SMILES: CC(=O)C(C(=O)NC1=CC(=C(C=C1OC)Cl)OC)N=NC2=C(C=C(C=C2)C3=CC(=C(C=C3)N=NC(C(=O)C)C(=O)NC4=CC(=C(C=C4OC)Cl)OC)Cl)Cl

Chemical and Physical Properties

Computed Properties

Property NameProperty Value
Timbang nga Molekular818.5 g/mol
XLogP3-AA9.2
Hydrogen Bond Donor Count2
Hydrogen Bond Acceptor Count12
Rotatable Bond Count15
Exact Mass818.100623 g/mol
Monoisotopic Mass818.100623 g/mol
Topological Polar Surface Area179Ų
Heavy Atom Count54
Formal Charge0
Complexity1250
Isotope Atom Count0
Defined Atom Stereocenter Count0
Undefined Atom Stereocenter Count2
Defined Bond Stereocenter Count0
Undefined Bond Stereocenter Count0
Covalently-Bonded Unit Count1
Compound Is CanonicalizedYes
